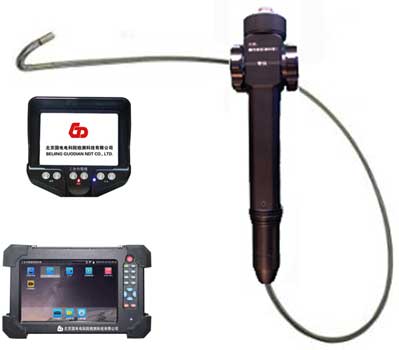

A Series Industrial Endoscope

1. Introduction

         The new industrial endoscope integrates optical, precision mechanism, electronic and camera technology in one system and is suitable for inspections where personnel can not access or see. The display allows images and video in the inspection process to be saved and replayed.

2. Features

(1) Optional 5-inch or7-inch control unit;

(2) High-resolution CCD or CMOS image sensor;

(3) Camera with video recording and image capture functionality;

(4) Integrated LCD for easy viewing and navigation;

(5) Built-in LED lighting with adjustable intensity;

(6) Using steel wire to control the articulation and direction of probes;

(7) Flexible combination of monitor and probe;

(8) Rechargeable Lithium battery.

3. Technical Data

(1) Probe outer diameter: 3.2mm/6mm/8mm/11mm

(2) Probe articulation: 4-way articulation, articulation range ≥110 °

(3) Light source: LED light, adjustable

(4) Camera: CCD or CMOS image sensor

(5) Resolution: analog 400000pixels /digital 1mp

(6) Cable length: 1-10 meters optional

(7) Wire: Stainless steel or tungsten braid (optional)

(8) Screen: 5-inch or 7-inch LCD screen

(9) Storage capacity: 32G

(10) Output: USB interface connected to computer without driver

(11) Power: rechargeable lithium battery with working life more than 4hs
