Separate Magnetic Particle Flaw Detector

    When using magnetic powder to detect faults in the header, the common yoke probe can only detect the outer part of the outermost pipe row, and the probe cannot be placed in the middle of the pipe row, resulting in a very low flaw detection ratio, which simply cannot meet the requirements of the site.

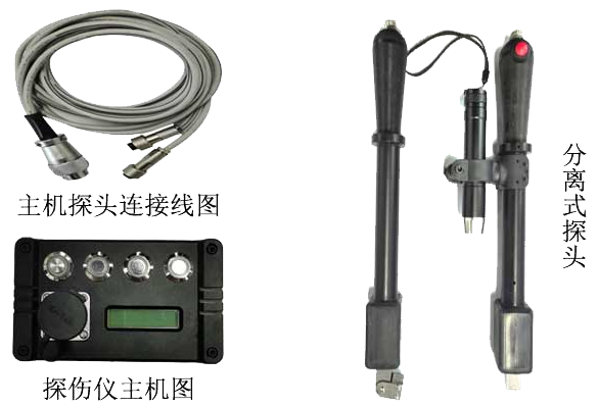

    The newly developed separate magnetic probe divides the yoke probe into two thin rod probes, so that they can be placed in any position of the tube seat, and its straight rod is facing the header body, and the rod with 90° elbow is facing the wall of the small tube. Sensitivity test type A test plate (30/100) can clearly display, meet the requirements of its specification, this device can also be used for complex workpiece surface detection.
