Oxide Scale Detector

Model: BTDO--I

1. Introduction

A hard oxide coating will gradually build up on the inside of power generation boiler tubes. The thicker the oxide layer, the less efficient the boiler becomes and additional heat build up will shorten the life of the boiler.

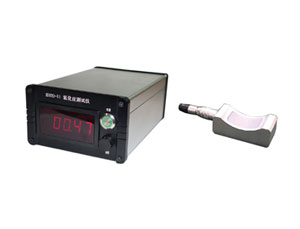

BTDO - I Oxide scale detector is designed to measure Oxide/Scale thickness in boiler tubing by use of advanced electromagnetic detection technology. If you want to detect ferromagnetic foreign objects, such as iron and metal wire, our Oxide scale detector is also a good choice.

2. Functions and Features

- Light-weight, simple, easy to use.

- Fast detection speed, digital and real-time display of testing data, needs no surface treatment of test part.

- High sensitivity to accurately reflect small changes in the amount of scales in the pipe.

- Can be used to detect not only oxide scale, but also ferromagnetic foreign bodies.

3. Technical Specification

Working temperature: -20℃～＋60℃

Display: LED small LCD

Dimension: 260mm*220mm*100mm

Weight: 1.5 Kg

Power source: Lithium battery

Run time of battery: 4 hours

Sensitivity: magneto sensor, 0.01g/mv
